Resource Types¶

Experience Builder organizes content and functionality into different resource types. Each resource type serves a specific purpose in building and managing websites. Understanding these resource types is essential for effectively structuring your Experience Builder projects.

Overview¶

Resource types categorize files and content based on their function and format. Each resource type has specific file extensions, content structures, and use cases within the Experience Builder system.

Resource Type Reference¶

Name	Description	File Extensions
Layouts	Liquid templates that define the overall page structure and HTML wrapper.	`layout`
Pages	JSON files that define page routes, metadata, and component/widget composition.	`page`, `ctxpage`
Components	Liquid resources with structures that create modular, customizable content blocks.	`component`
Snippets	Reusable Liquid code fragments that can be included in other templates.	`snippet`
Assets	Static files including CSS, JavaScript, and Liquid-processed styles/scripts.	`css`, `js`, `liquidcss`, `liquidjs`
Locales	JSON files containing translation keys and values for internationalization.	`locale`, `ctxlocale`
Widgets	JSON files that organize and configure component instances on pages.	`widget`, `ctxwidget`
Media	Binary files including images, videos, audio, and fonts stored in DAM.	`jpg`, `png`, `svg`, `gif`, `avif`, `ico`, `mp4`, `webm`, `woff`, `woff2`, `ttf`, `eot`, `media`, `ctxmedia`
Datas	JSON files containing configuration values referenced by components and pages.	`setting`, `ctxsetting`, `schema`

Layouts¶

Layouts are Liquid template files that define the overall HTML structure for pages. They serve as the wrapper that contains page content and typically include the <html>, <head>, and <body> tags.

Functionality¶

Define the base HTML structure for pages
Include common elements like meta tags, stylesheets, and scripts
Provide placeholders for page content rendering
Support Liquid template syntax for dynamic content

File Format¶

Layouts use the .layout extension and contain Liquid template code with HTML.

Example: default.layout

<html lang="en">
    <head>
        <title>{{ page.title }}</title>
        {% renderinline styles %}
    </head>
    <body>
        {% renderbody %}
        {% renderinline scripts %}
    </body>
</html>

Pages¶

Pages are JSON files that define individual web pages, including their routes, metadata, and the components/widgets they contain.

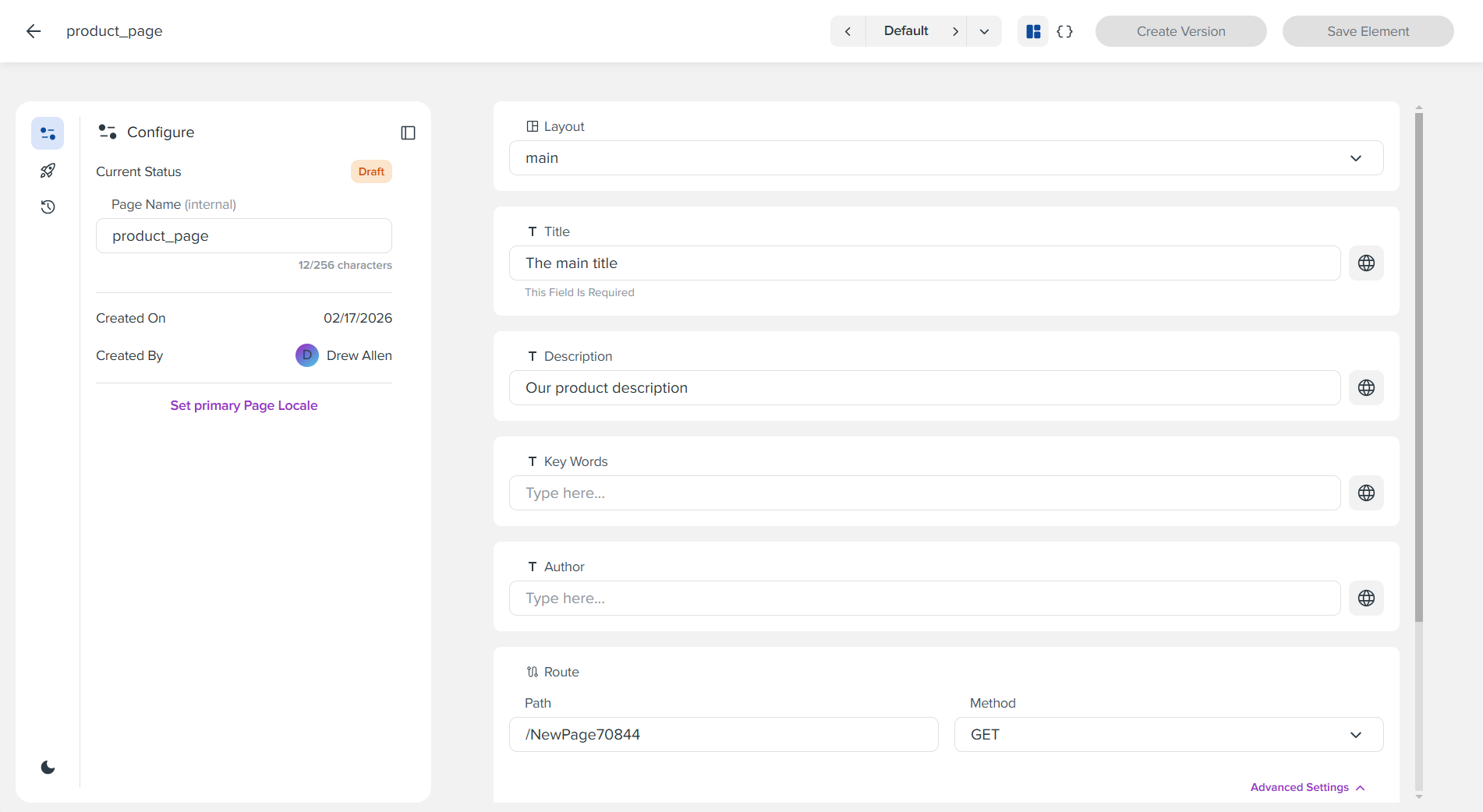

Page Configuration Example

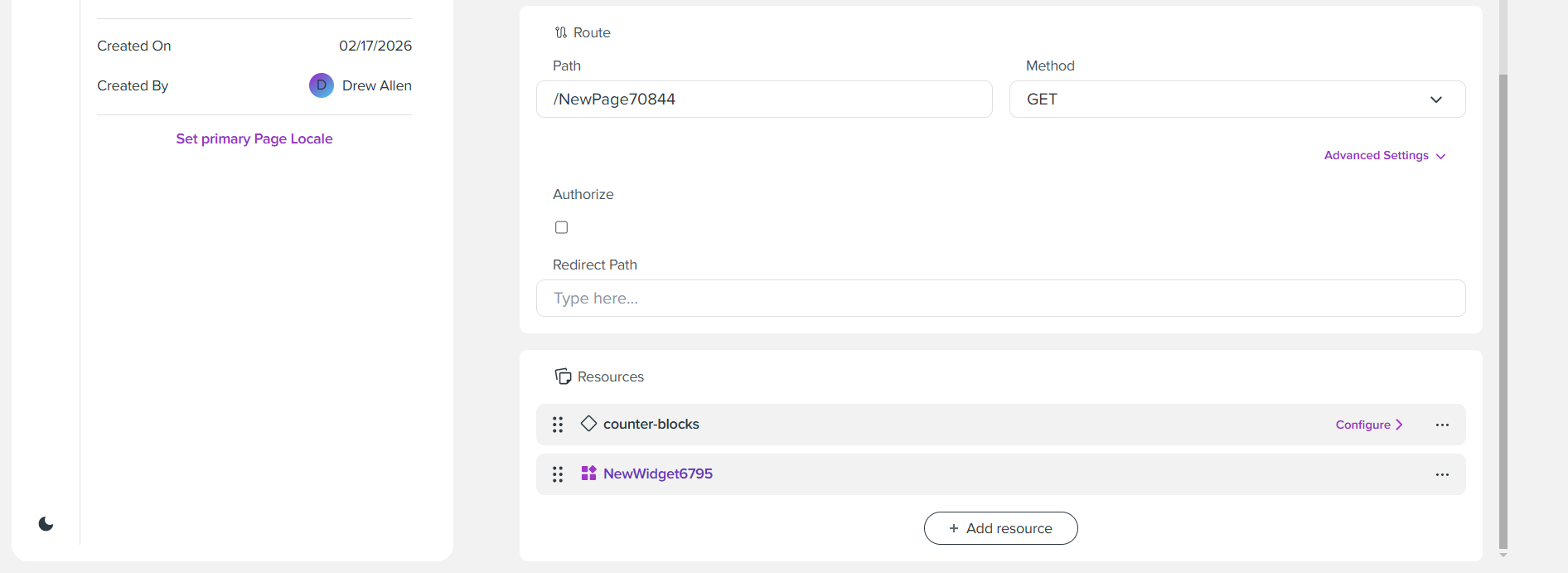

Page Configuration Example 2

Functionality¶

Define page routes and HTTP methods (GET, POST)
Specify layout assignment
Configure page metadata (title, description, keywords, author)
Organize components and widgets on the page
Define API data fetching through metaObjects

Page Attributes¶

Attributes	Type	Required	Description	Default
`layout`	String/Boolean	No	Filename of the layout to use, or `false` for no layout.	-
`title`	String	No	Page title for SEO and browser display.	-
`description`	String	No	Meta description for SEO.	-
`keyWords`	String	No	Meta keywords for SEO.	-
`author`	String	No	Page author information.	-
`route`	Object	No	Routing configuration including path, method, and metaObjects.	-
`widgets`	Array(String)	No	Array of widget filenames to include on the page.	-
`components`	Object	No	Object mapping component instance IDs to component configurations.	-
`order`	Array(String)	No	Array defining the order of widgets and components on the page.	-

Route Attributes¶

Attributes	Type	Required	Description	Default
`path`	String	Yes	URL path pattern for the route.	-
`method`	String	No	HTTP method (GET, POST, etc.).	`GET`
`authorize`	Boolean	No	When `true`, requires user authentication before accessing the page. Unauthorized users are redirected or blocked.	`false`
`redirectPath`	String	No	URL path to redirect users to when accessing this route. If set, users are redirected instead of rendering the page. Leave empty to render normally.	-
`metaObjects`	Array(Object)	No	Array of meta objects for API data fetching.	-

Example: product_page.page

{
  "route": {
    "path": "/NewPage70844",
    "method": "GET",
    "authorize": false,
    "redirectPath": ""
  },
  "layout": "layouts/main",
  "title": "The main title",
  "description": "Our product description",
  "keyWords": "",
  "author": "",
  "order": [
    "IoUHo31wJv3xFjxX",
    "Assets/NewWidget6795"
  ],
  "widgets": [
    "Assets/NewWidget6795"
  ],
  "components": {
    "IoUHo31wJv3xFjxX": {
      "id": "block-samples/counter-blocks",
      "displayName": "",
      "blockOrder": []
    }
  }
}

Components¶

Components are Liquid resources that enable the creation of modular and customizable content. A JSON definition, placed within Liquid structure tags at the bottom of each component, specifies the customizable behavior of the component. The component structure can also instruct the pre-render phase of the request life cycle to fetch data from the API SDK.

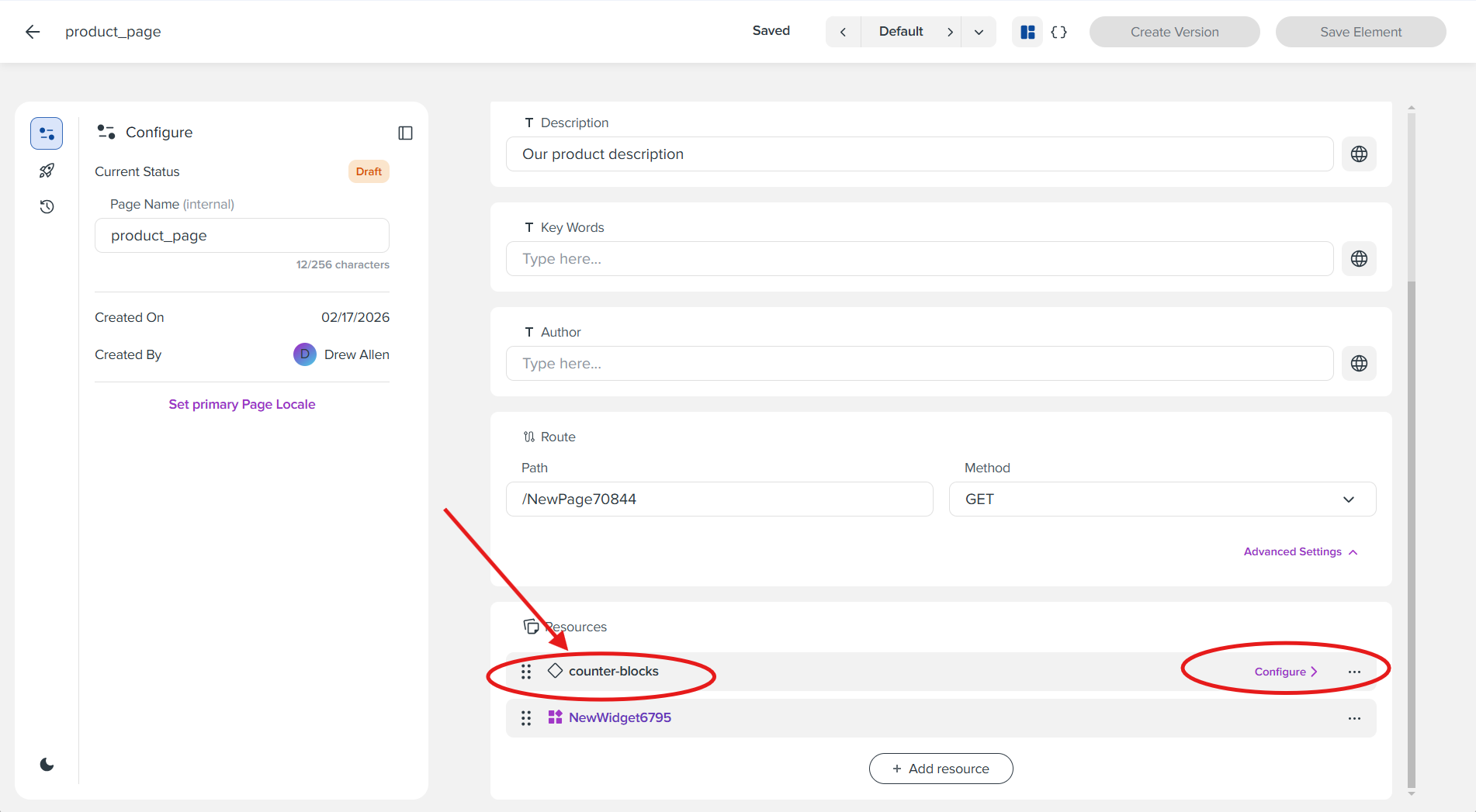

Component Configuration Example

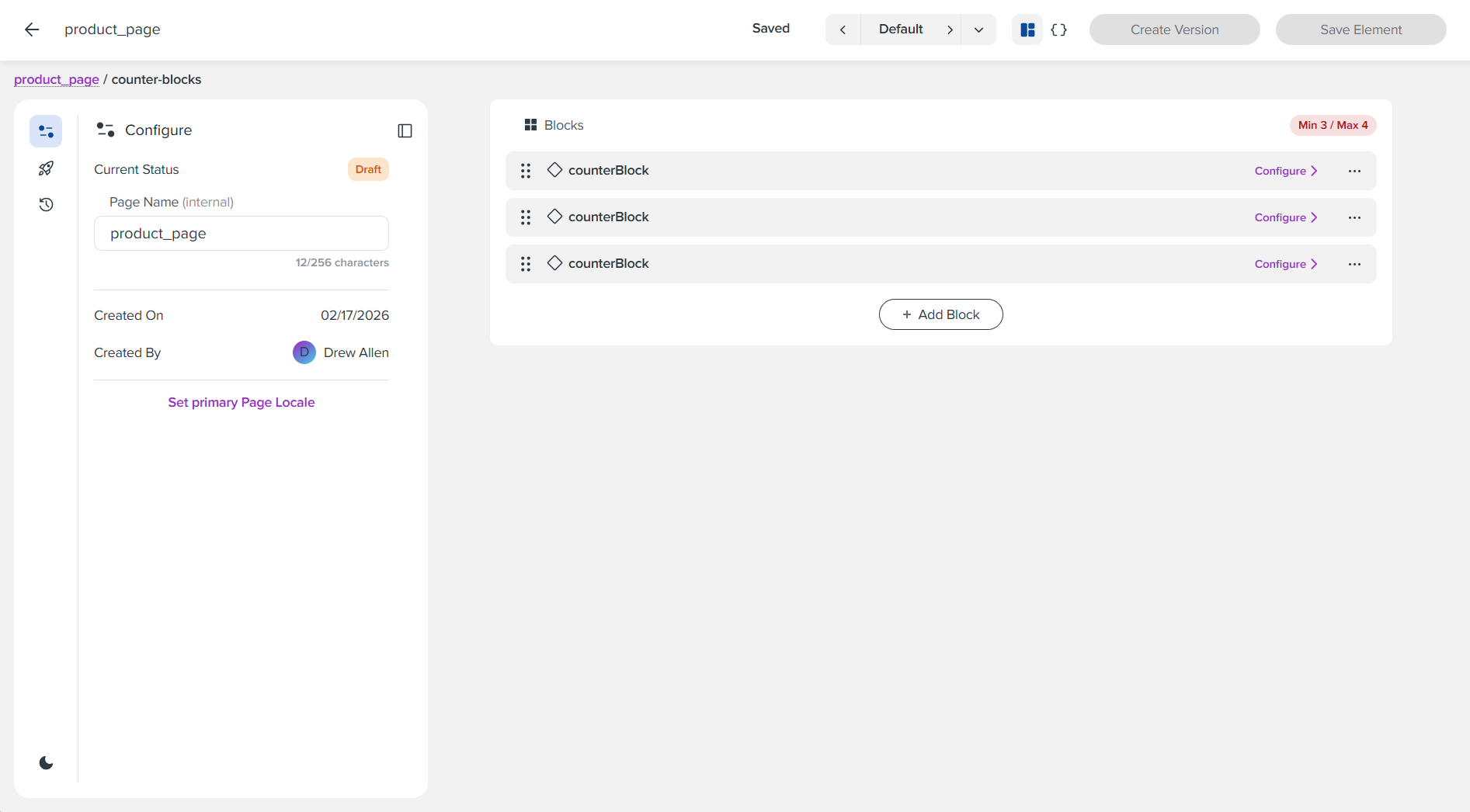

Component Blocks Example

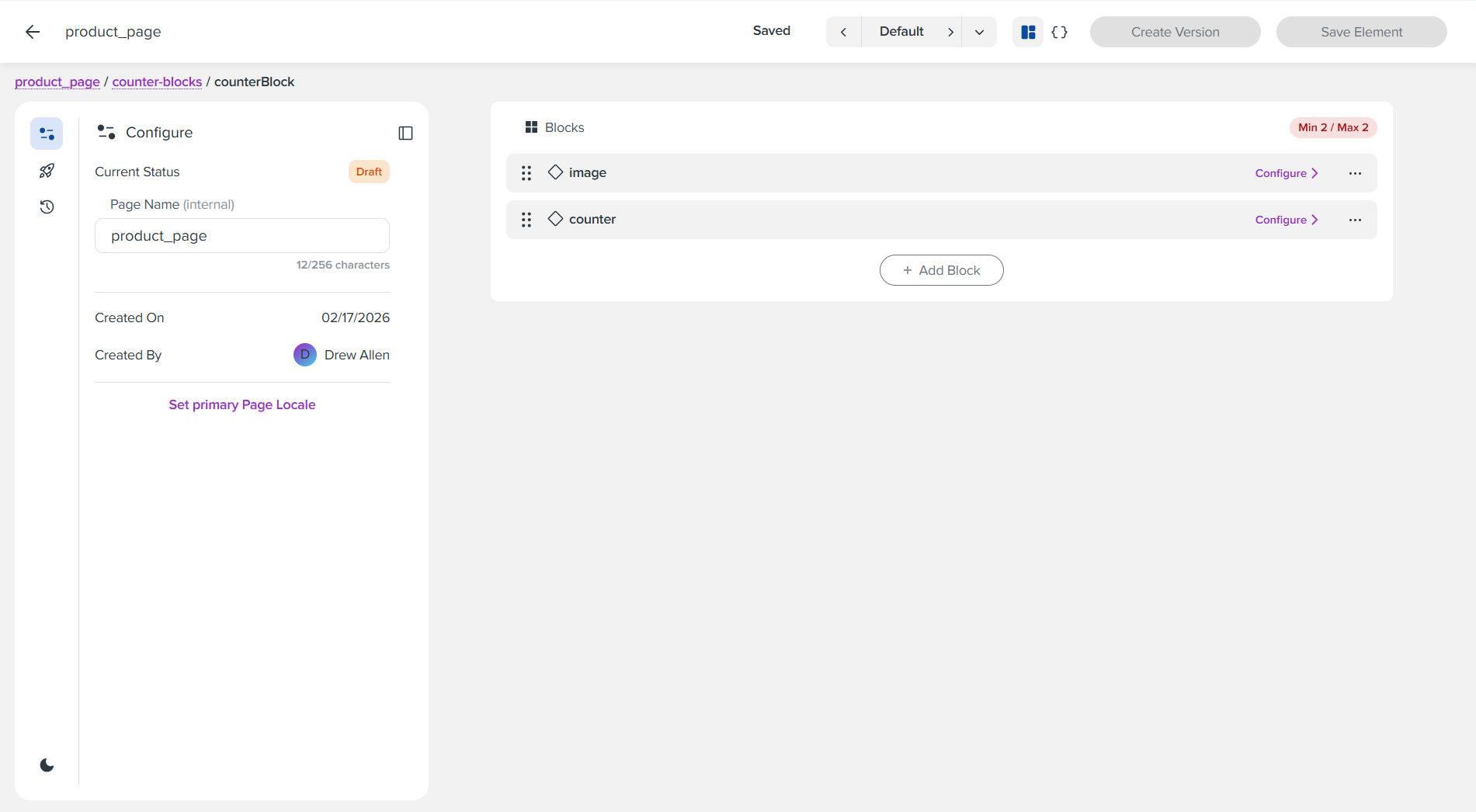

Component Blocks Detail Example

See Components for detailed documentation.

Snippets¶

Snippets are reusable Liquid code fragments that can be included in other templates using the {% render %} or {% include %} tags. They help reduce code duplication and maintain consistency across templates.

Functionality¶

Create reusable Liquid code blocks
Accept parameters for customization
Reduce code duplication across templates
Maintain consistent UI patterns

File Format¶

Snippets use the .snippet extension and contain Liquid template code.

Example: button.snippet

<a href="{{ href }}" class="button {{ class }}">
    {{ text }}
</a>

Usage in Component:

{% render 'button', href: '/products', text: 'Shop Now', class: 'button-primary' %}

Assets¶

Assets are static files including CSS stylesheets, JavaScript files, and Liquid-processed versions of these files. They provide styling and functionality to your website.

Functionality¶

Provide CSS styling for components and pages
Include JavaScript functionality
Support Liquid processing for dynamic asset generation
Organize styles and scripts by feature or purpose

File Types¶

Extension	Description	Content Type
`css`	Standard CSS stylesheet	`text/css`
`js`	Standard JavaScript file	`text/javascript`
`liquidcss`	CSS file with Liquid template syntax	`text/css`
`liquidjs`	JavaScript file with Liquid syntax	`text/javascript`

Example: styles.css

.button-primary {
    background-color: var(--color-primary);
    color: var(--color-text-light);
    padding: 0.75rem 1.5rem;
}

Example: script.liquidjs

document.addEventListener('DOMContentLoaded', function() {
    const button = document.querySelector('[data-action="submit"]');
    if (button) {
        button.addEventListener('click', function() {
            // Dynamic functionality using {{ page.title }} or other Liquid variables
            console.log('Page: {{ page.title }}');
        });
    }
});

Locales¶

Locales are JSON files containing translation keys and values for internationalization. They enable multi-language support by organizing translations into hierarchical structures.

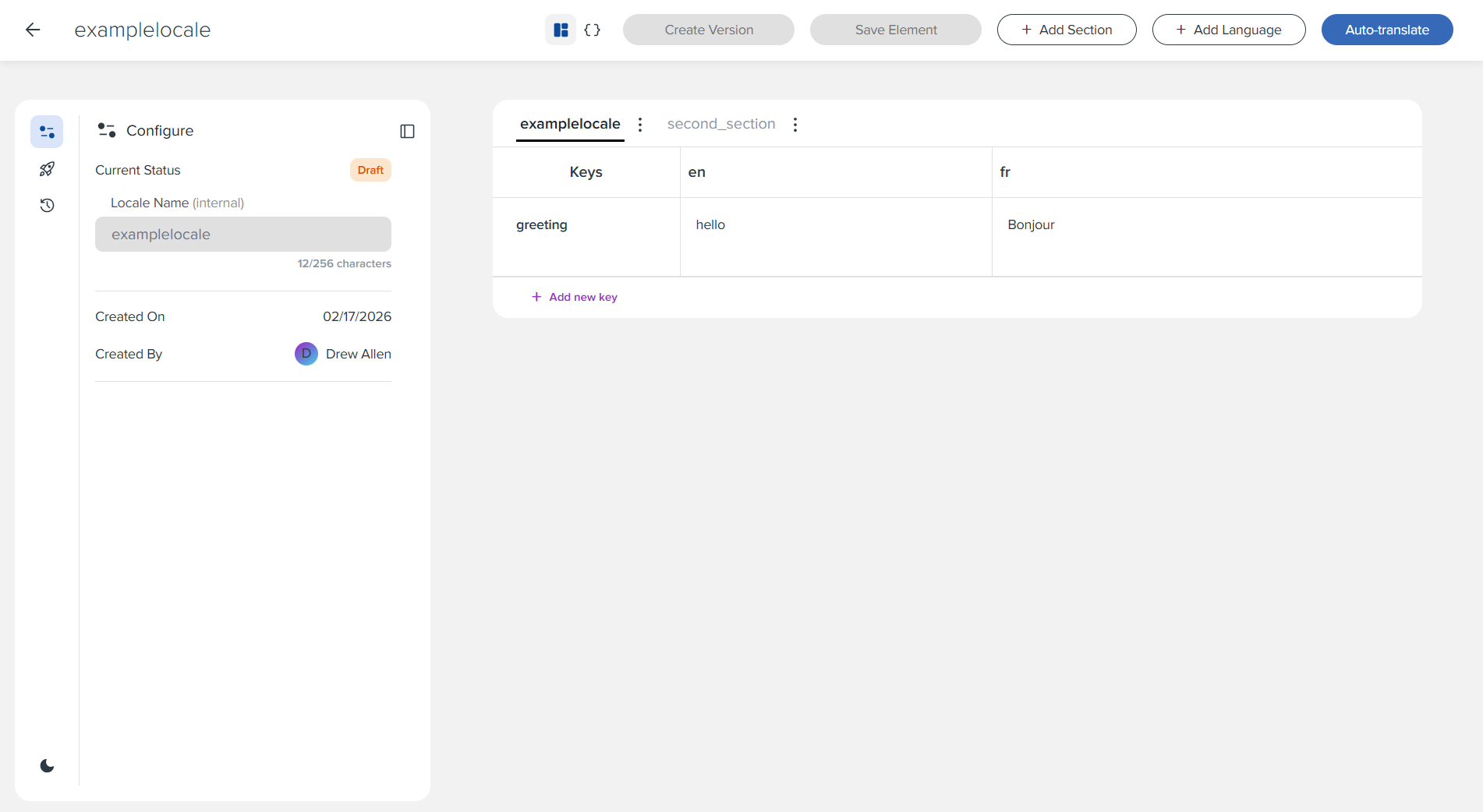

Locale Configuration Example

Functionality¶

Store translation strings for multiple languages
Organize translations into categories and groups
Support context-aware translations
Enable market-specific localization

File Format¶

Locales use the .locale extension (standard) or .ctxlocale extension (context-aware) and contain JSON with a hierarchical structure.

Example: examplelocale.en

{
  "culture": "en",
  "locale": {
    "sections": {
      "examplelocale": {
        "greeting": "hello"
      },
      "second_section": {
        "exit": "goodbye"
      }
    }
  }
}

Example: examplelocale.en.my (Context Locale)

{
  "locale": {
    "sections": {
      "examplelocale": {
        "greeting": "hey there!"
      }
    }
  },
  "parent": "wikiexamples/examplelocale.en",
  "context": {
    "markets": ["my"]
  }
}

Locale Structure¶

Attributes	Type	Required	Description	Default
`culture`	String	Yes	Culture code (e.g., "en", "es").	-
`locale`	Object	Yes	Hierarchical object containing translation keys and values.	-

Widgets¶

Widgets are JSON files that organize and configure component instances. They act as containers that can be reused across multiple pages, providing a way to group related components together.

Functionality¶

Organize multiple component instances
Define component order and configuration
Create reusable component groups
Support context-aware widget inheritance

Attributes	Type	Required	Description	Default
`widgets`	Array(String)	No	Array of widget filenames to include (for widget composition).	-
`components`	Object	No	Object mapping component instance IDs to component configurations.	-
`order`	Array(String)	No	Array defining the order of components within the widget.	-

Example: header.widget

{
  "components": {
    "logo-1": {
      "id": "logo.component",
      "enabled": true,
      "settings": {
        "image": "logo.png",
        "alt": "Company Logo"
      }
    },
    "navigation-1": {
      "id": "navigation.component",
      "enabled": true,
      "settings": {
        "menuItems": ["Home", "Products", "About", "Contact"]
      }
    }
  },
  "order": [
    "logo-1",
    "navigation-1"
  ]
}

Example: ctxwidget (Context Widget)

{
  "parent": "@Parent",
  "context": {
    "markets": ["intl"]
  },
  "widget": {
    "components": {
      "localized-header-1": {
        "id": "header.component",
        "enabled": true
      }
    }
  }
}

Media¶

Media resources are binary files stored in the Digital Asset Management (DAM) system. They include images, videos, audio files, and fonts used throughout your website.

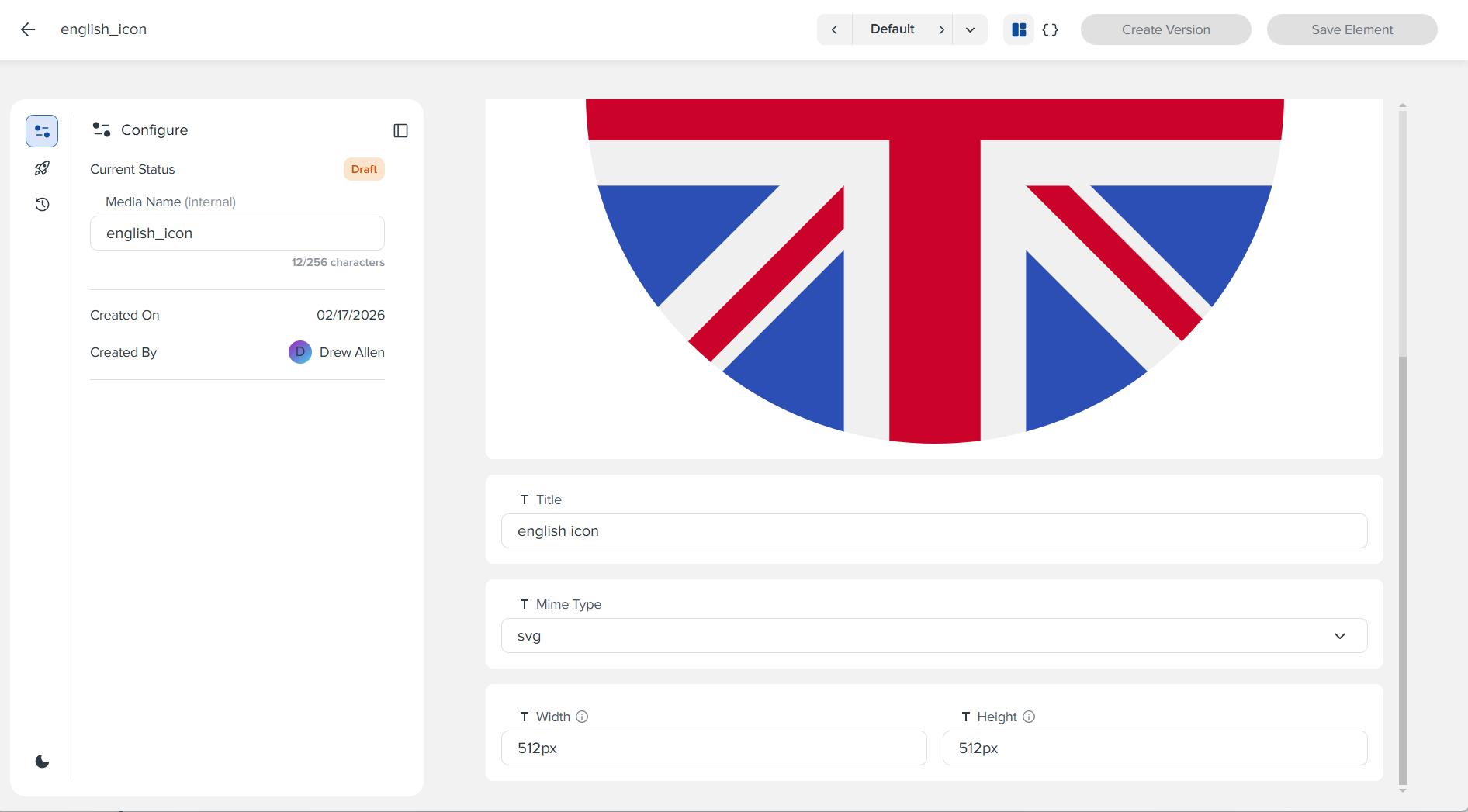

Media Configuration Example

Functionality¶

Store and manage binary media files
Support various image, video, audio, and font formats
Provide metadata about media assets
Enable context-aware media selection

Supported Media Types¶

Category	Extensions	Description
Images	`jpg`, `jpeg`, `png`, `gif`, `svg`, `avif`, `ico`, `webp`	Raster and vector images
Videos	`mp4`, `webm`, `avi`, `mov`, `flv`	Video files
Audio	`aac`, `wav`, `weba`	Audio files
Fonts	`woff`, `woff2`, `ttf`, `eot`	Web fonts

Media JSON Format¶

Media can also be referenced as JSON files (.media or .ctxmedia) that point to DAM assets.

Example: english_icon.media

{
  "damId": "a7f3b2c1-4d8e-5f9a-6b2c-3d4e5f6a7b8c",
  "title": "english icon",
  "mimeType": "svg",
  "width": "512px",
  "height": "512px"
}

Example: english_icon.pl.media (Context Media)

{
  "parent": "wikiexamples/english_icon",
  "context": {
    "markets": ["pl"]
  },
  "media": {
    "title": "english icon for pages",
    "mimeType": "jpeg"
  }
}

Media Attributes¶

Attributes	Type	Required	Description	Default
`damId`	String	Yes	UUID of the media asset in DAM.	-
`title`	String	No	Display title for the media asset.	-
`width`	String	No	Width in pixels (e.g., "1920px").	-
`height`	String	No	Height in pixels (e.g., "1080px").	-
`mimeType`	String	No	MIME type of the media file.	-

Datas¶

Datas are JSON files containing configuration values that can be referenced by components, pages, and other resources. They provide a centralized way to manage site-wide configuration.

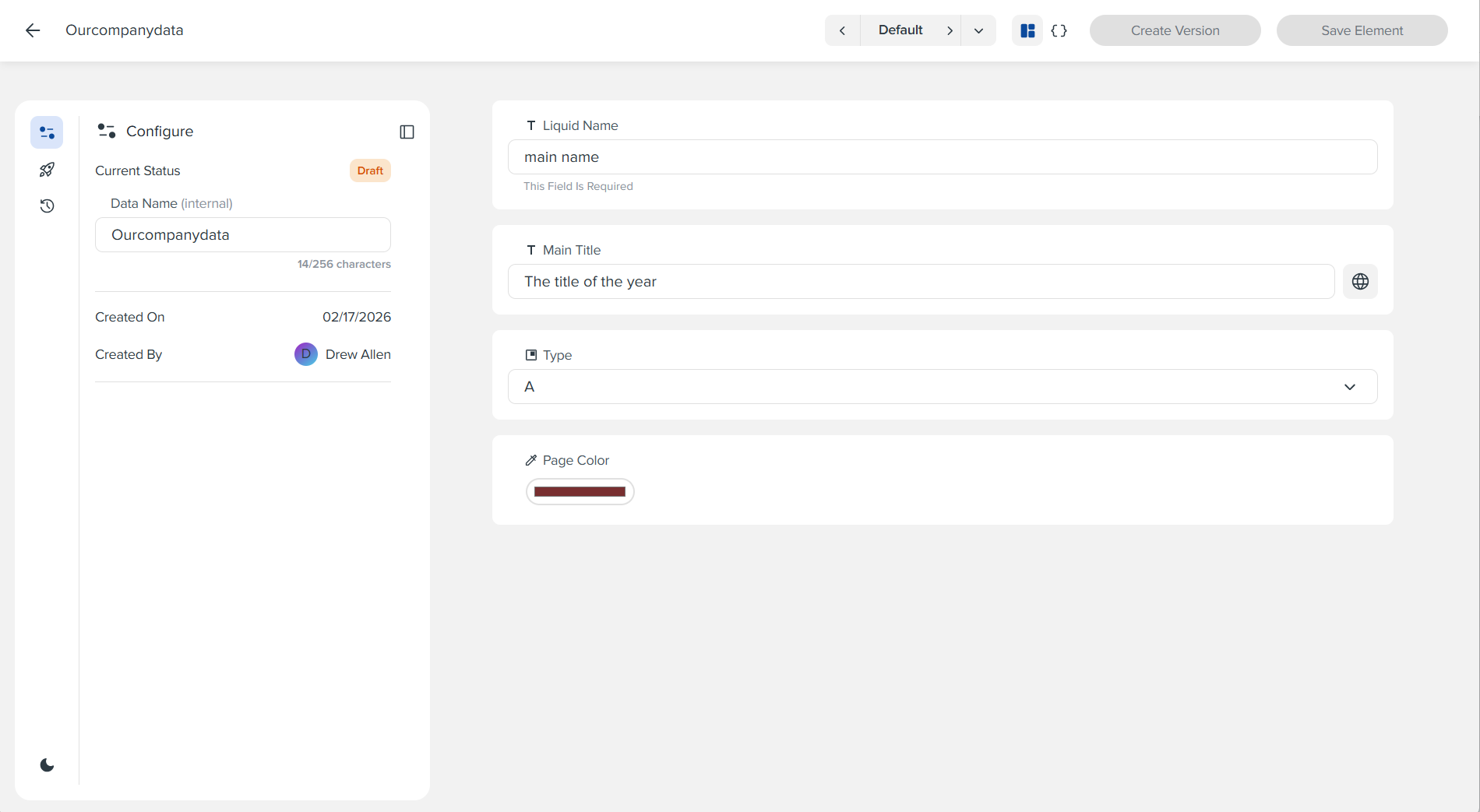

Data Configuration Example

Functionality¶

Store site-wide configuration values
Provide datas that components can reference
Support hierarchical datas inheritance
Enable context-aware datas (market-specific, etc.)

Data File Format¶

Datas use the .setting extension (standard) or .ctxsetting extension (context-aware). Data files reference a structure file (.schema) that defines the structure of available datas.

Example: Ourcompanydata.setting

{
  "schema": "wikiexamples/examplestruct123.schema",
  "settings": {
    "Title": "The title of the year",
    "Type": "A",
    "ColorSample": "#7f2f2f"
  },
  "liquidName": "main name"
}

Example: Ourcompanydata.at.setting (Context Data)

{
  "parent": "wikiexamples/Ourcompanydata",
  "context": {
    "markets": ["at"]
  },
  "settings": {
    "Title": "The title of the year!",
    "Type": "B"
  }
}

Data Structure Format¶

Data structures (.schema) define the structure and validation rules for data files.

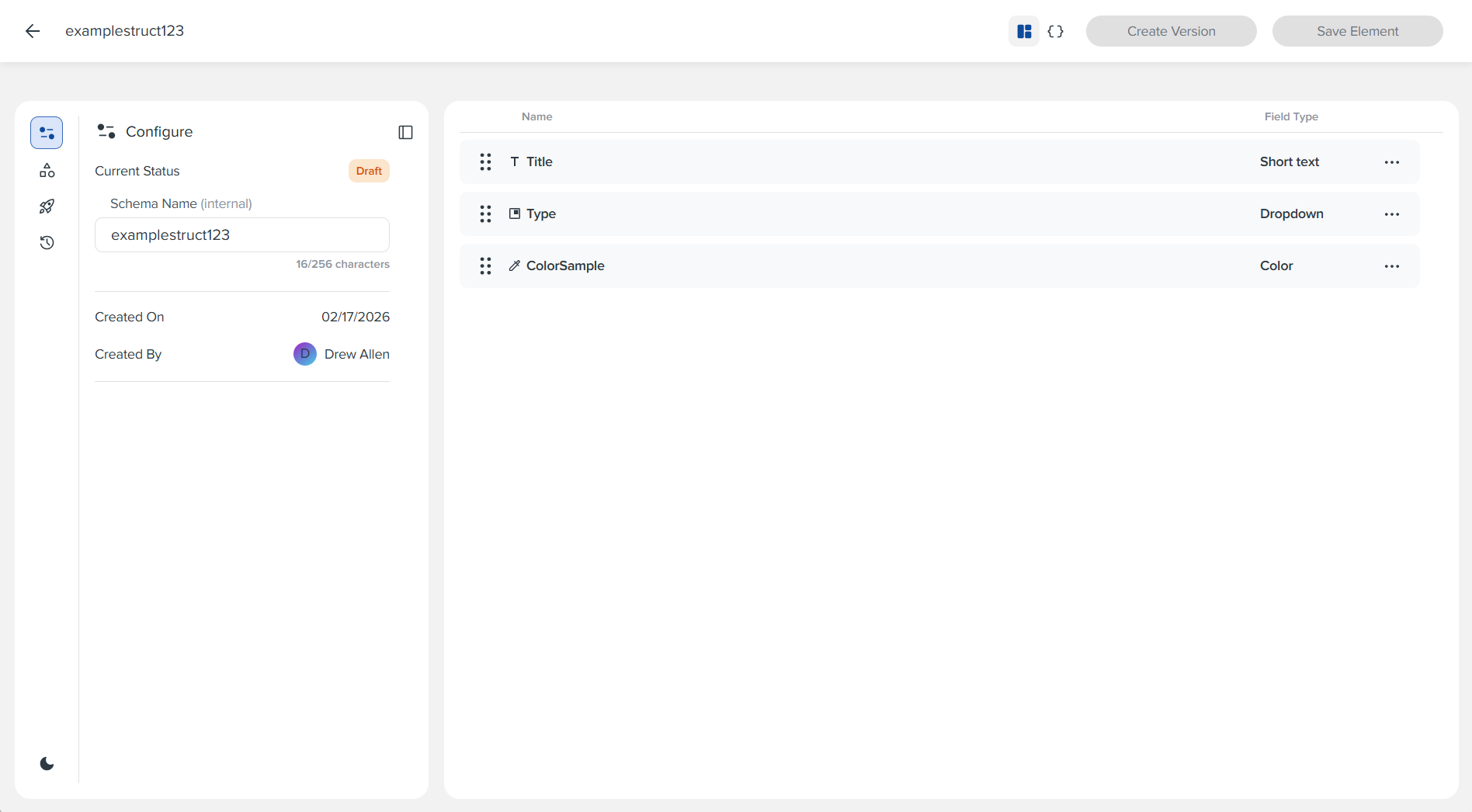

Data Structure Configuration Example

Example: examplestruct123.schema

[
  {
    "type": "text",
    "label": "Main Title",
    "id": "Title"
  },
  {
    "type": "select",
    "label": "Type",
    "id": "Type",
    "options": [
      {
        "value": "A",
        "label": "Option A"
      },
      {
        "value": "B",
        "label": "Option B"
      }
    ]
  },
  {
    "type": "color",
    "label": "Page Color",
    "id": "ColorSample"
  }
]

Data Structure Attributes¶

Attributes	Type	Required	Description	Default
`id`	String	Yes	Unique identifier for the datas section.	-
`settings`	Array(Object)	Yes	Array of data definitions.	-

Data Definition Attributes¶

Attributes	Type	Required	Description	Default
`type`	String	Yes	Data type (text, number, color, image, etc.).	-
`id`	String	Yes	Data identifier used to access the value.	-
`label`	String	Yes	Display label for the data.	-
`default`	Any	No	Default value for the data.	`null`
`schema`	String	No	Reference to another structure for nested datas.	-
`of`	String	No	Type constraint for array datas.	-

Context-Aware Resources¶

Several resource types support context-aware versions that enable inheritance and market-specific customization:

Context Pages (ctxpage) - Pages that inherit from parent pages with market-specific overrides
Context Locales (ctxlocale) - Locales that inherit from parent locales
Context Widgets (ctxwidget) - Widgets that inherit from parent widgets
Context Media (ctxmedia) - Media selections that vary by context
Context Datas (ctxsetting) - Datas that inherit from parent datas

Context Attributes¶

Attributes	Type	Required	Description	Default
`parent`	String	Yes	Reference to parent resource (typically "@Parent").	-
`context`	Object	Yes	Context definition (markets, languages, etc.).	-

Example Context Object:

{
  "parent": "@Parent",
  "context": {
    "markets": ["intl", "us"],
    "languages": ["en", "es"]
  }
}

Best Practices¶

Organize by Feature: Group related resources together in folders (e.g., components/hero/, widgets/header/)
Use Descriptive Names: Name resources clearly to indicate their purpose (e.g., product-card.component, main-navigation.widget)
Leverage Context Resources: Use context-aware resources for market-specific or language-specific customizations
Reuse Snippets: Create snippets for commonly used UI patterns to maintain consistency
Centralize Datas: Use data files for values that need to be changed across multiple components
Optimize Assets: Keep CSS and JavaScript files focused and organized by functionality
Structure Locales: Organize locale files hierarchically to match your application's structure

Resource Types¶

Overview¶

Resource Type Reference¶

Layouts¶

Functionality¶

File Format¶

Pages¶

Functionality¶

Page Attributes¶

Route Attributes¶

Components¶

Snippets¶

Functionality¶

File Format¶

Assets¶

Functionality¶

File Types¶

Locales¶

Functionality¶

File Format¶

Locale Structure¶

Widgets¶

Functionality¶

Widget Attributes¶

Media¶

Functionality¶

Supported Media Types¶

Media JSON Format¶

Media Attributes¶

Datas¶

Functionality¶

Data File Format¶

Data Structure Format¶

Data Structure Attributes¶

Data Definition Attributes¶

Context-Aware Resources¶

Context Attributes¶

Best Practices¶
